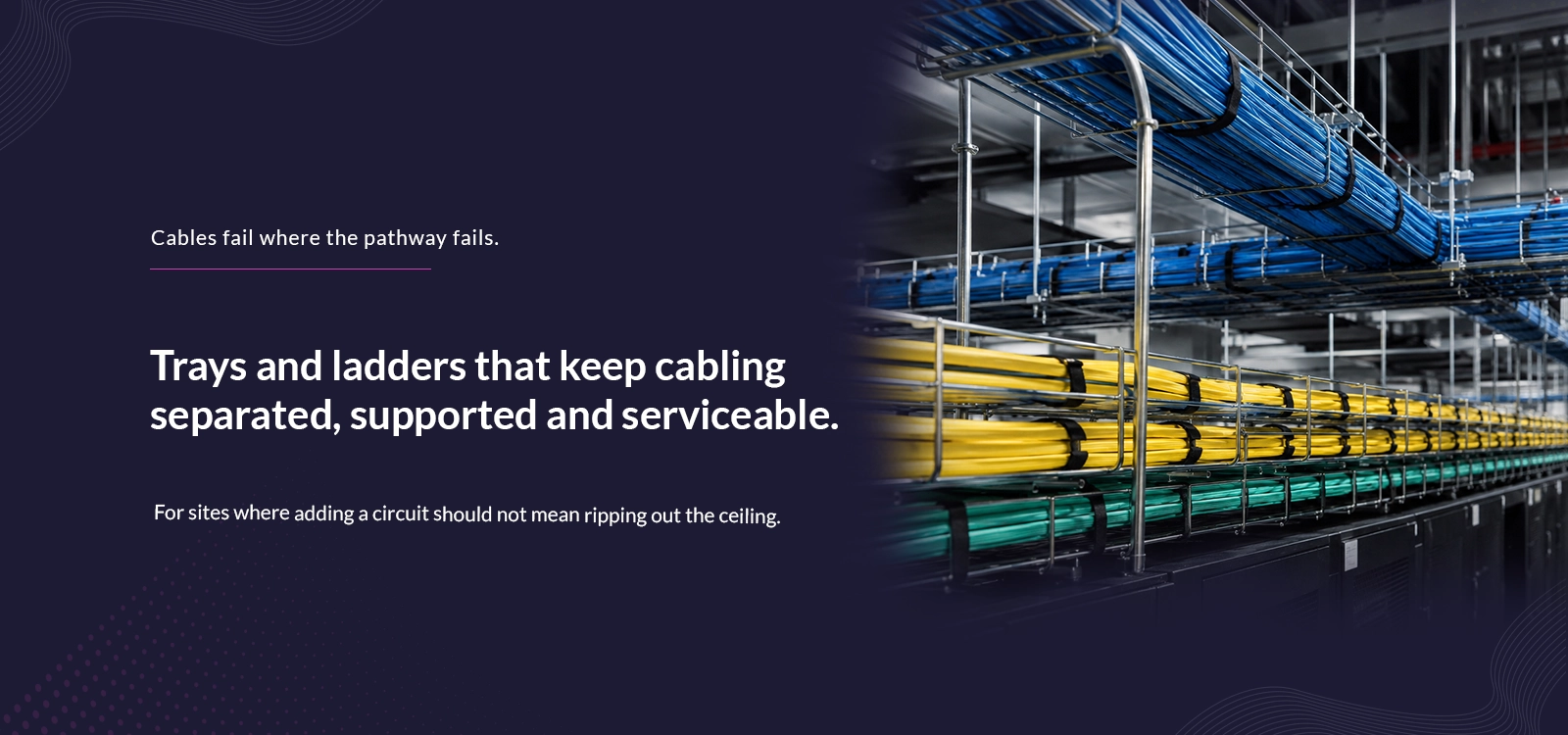

Cable Trays and Ladders: Pathways That Keep Cabling Separated, Supported, and Serviceable
Cable trays and ladders are the support pathways that carry and protect cabling across a building, overhead, underfloor and along walls. A cable management pathway covers the tray type, its load and fill capacity, the separation of power from data, grounding and bonding, and the bend radius and access that keep cabling safe to run and easy to extend.
It is the least glamorous part of structured cabling and the part that quietly decides how long the cabling lasts. Cables rarely fail in open air; they fail where the pathway crushes them, overheats them, picks up interference, or makes them impossible to reach. Get the trays right, and the cabling underneath stays healthy for years and absorbs every move, add and change. Get them wrong, and the pathway becomes the reason the network degrades.
The Main Types of Cable Tray, and Where Each Fits
Most sites use more than one tray type, chosen by load, cable type, ventilation and how often the run will change. The table below sets out where each earns its place.
| Tray type | Best use | Ventilation | Why |
| Ladder tray | Heavy backbone and power runs, long overhead spans | High | Strong support and easy cable drop-outs along the run |
| Perforated tray | Mixed data and power runs of light to medium weight | Good | Mechanical protection with airflow through the base |
| Solid-bottom tray | Sensitive or small-diameter cables and fibre | Low | Shields cabling from dust, debris and interference |
| Wire mesh (basket) tray | Light data runs with frequent moves and changes | High | Fast to install, cut and modify on site |
Material matters as much as shape. Pre-galvanised (GI) and hot-dip galvanised steel cover most indoor and industrial runs; aluminium suits weight-sensitive or mildly corrosive settings, and stainless steel or FRP is used where conditions are harsh. The right combination is a function of load, environment and corrosion risk, not a single default.
Standard Cable Tray Sizes
Trays are specified by width, depth and steel gauge so runs can be sized and extended predictably:
- Width: commonly 50, 100, 150, 300, 450 and 600 mm, with wider ladder sections for heavy backbone runs.
- Depth (side height): commonly 25, 50 and 75 mm for trays, deeper for ladder and high-load runs.
- Steel gauge: typically 1.0 to 2.0 mm for GI trays, heavier for ladders and high-density pathways.
The right size is set by the number and diameter of cables to be carried, a target fill of around 50 percent, and headroom for future growth, not by whatever is on the shelf.
Why the Pathway Decides How Long Cabling Lasts
- The right tray for the run: ladder, perforated, solid-bottom or wire mesh, matched to load, cable type and ventilation.
- Power and data separated: routing that limits electromagnetic interference between power and data cabling, a common and hard-to-diagnose source of link faults.
- Fill headroom built in: trays are best kept to around 50 percent fill so cables can be added and heat can dissipate, rather than packed solid.
- Bend radius preserved: pathways and fittings that hold the minimum bend radius, about four times cable diameter for copper and ten times for fibre, so performance is not quietly degraded at every corner.
- Grounded and bonded: metallic trays earthed and bonded to the standard for safety and signal integrity.
- Accessible by design: lift-off and open layouts that make inspection, moves and additions a quick job rather than a demolition.
A pathway is cheap to install and expensive to get wrong. Overfill a tray, and you trap heat and make every future change a fight. Run power and data together, and you invite interference that shows up as intermittent drops months later. Ignore the bend radius at the corners, and you lose performance; the test report never explains. None of this is visible on day one; all of it surfaces over the life of the cabling.
Proactive designs pathways as part of the cabling system, not as an afterthought bolted to the ceiling once the cable is already run. Routes are planned for load, separation, airflow, bend radius and access before the first bracket goes up, so the trays still make sense after years of changes.
Cable Tray Installation Across India: Why the Building Beats the Drawing
A tray layout that looks clean on a drawing meets a different reality on site. An operating factory routing trays around live machinery is a different job from an office fit-out above a false ceiling, or a coastal facility where corrosion decides the material before anything else.
Ceiling height, existing services, structural fixing points, corrosion exposure and access for installation all shape what good pathway design looks like in the field rather than on paper.
Pathways and spaces are planned to the ANSI/TIA-569 standard, with metallic trays selected and rated against the Indian Standard IS 14927 and international standards such as IEC 61537 and NEMA VE 1, and grounding to local electrical code. In full data centre environments, this extends to overhead and underfloor containment designed around the racks and aisles. Proactive has installed cable tray and ladder systems across manufacturing, BFSI, healthcare, IT, ITeS and GCC sites in Delhi, Mumbai, Bengaluru, Pune and Hyderabad.
Proactive Data Systems: The Partner That Designs, Installs, and Stays
Specifying a tray is simple. Routing pathways cleanly through a working building, separating services correctly, holding bend radius and leaving room to grow is the part that rewards experience.
Proactive surveys the building, designs routes for load, separation and access, selects the right tray type and material, and installs and bonds pathways to standard, with the cabling laid in to preserve performance. Behind that work is over three decades of enterprise infrastructure delivery, certified engineers and an ISO 9001:2015 quality system.
Pathways are the layer that carries everything else. Cable trays and ladders work alongside Cabling Solutions, Racking Solutions, CCTV and Surveillance, and DCIM Cabling Support, and extend into the containment design of our Data Center solutions, so routing, support and separation are planned with the whole system in view. New to the topic? Start with Structured Cabling 101.
From site survey and route design through installation, bonding and cable laying, to the 24/7 service desk that answers when something needs attention, Proactive builds pathway infrastructure that keeps cabling safe, clean and easy to extend for years.
